Model: BD3K6TL, BD5KTL, BD3K6TL-TD, BD5KTL-TD
Description

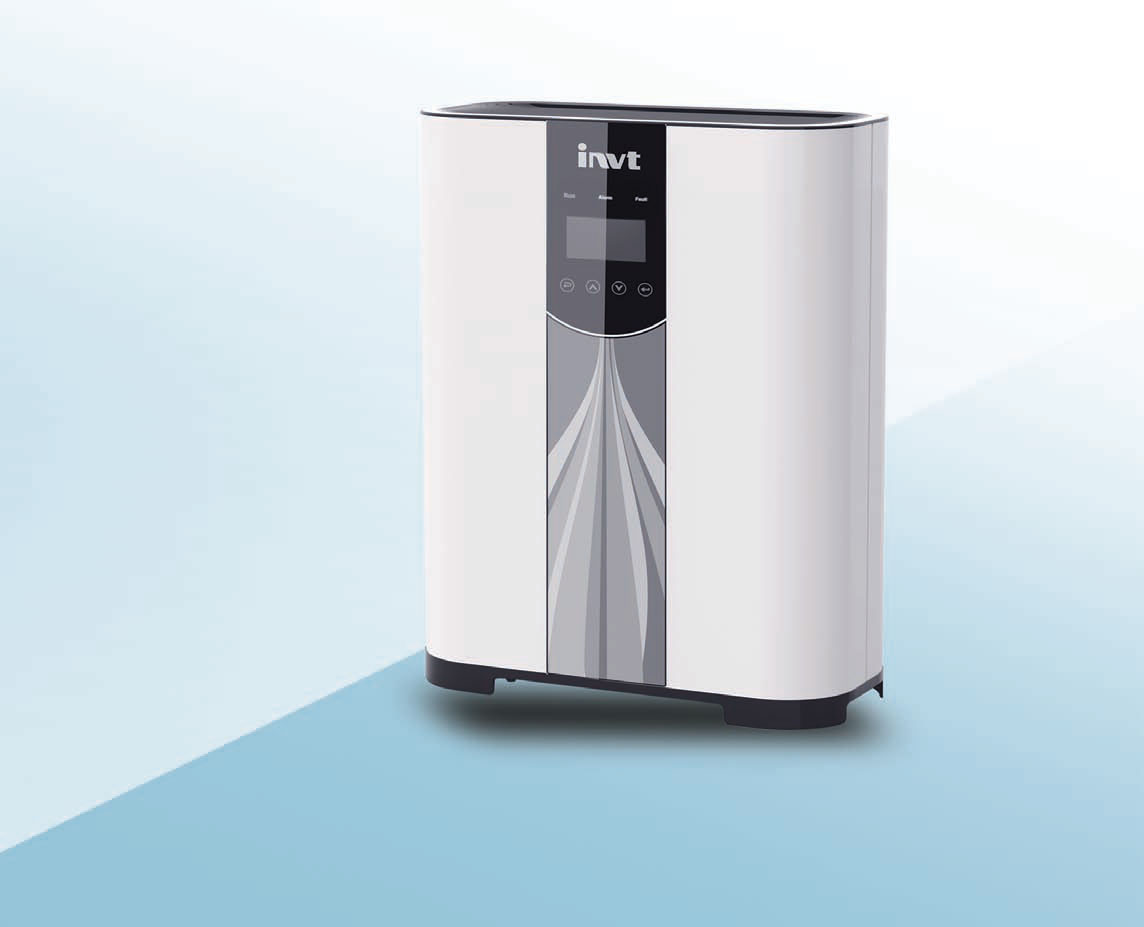

BD series hybrid inverter Series is a new generation of photovoltaic storage products which were developed by INVT based on the intelligent and free maintenance concept. This series integrates charge, energy storageand photovoltaic inverter inside with multifunctional and integrated BMS (battery management system).
It can automatically detect the state of grid and connect to it smoothly. This series is the best solution for the demand of peak shaving and can help consumers to maximize self-consumption of PV system.
Features
- Support moving roller Topology and wall mounting Topology installation, which largely saves the space and can move flexibly, suitable for various occasions;
- Professional BMS (battery management system), compatible with lead-acid battery and lithium battery;
- Available for setting the charging current of battery according to various battery Topologys;
- Combination of on-grid and off-grid function, UPS and backup all-in-one function;
- User-friendly HMI, colorful LCD;
- options: RS485 (standard), USB (standard), Ethernet (standard), Wifi (optional), diesel genset communication interface (optional);
- With Zero Export Function.
Specification
| BD3K6TL | BD5KTL | BD3K6TL-TD | BD5KTL-TD | |
|---|---|---|---|---|
| Input (PV) | ||||
| Max. DC Input power (W) | 5200 | 6600 | 5200 | 6600 |
| Max. DC voltage (W) | 5200 | |||
| Nominal DC voltage (V) | 380 | |||
| Start-up voltage /Minimum working
voltage (V) |
150V/100 | |||
| MPP voltage range | 120V~450 | |||
| Max. Input Current | 15A | |||
| Number of MPPT / String per MPPT | 2/2 | |||
| AC OUTPUT 1 (GRID) | ||||
| Rated power (W) | 3680 | 4600 | 3680 | 4600 |
| Rated voltage | 208/220/230/240V (Single-phase) | |||
| Rated frequency | 50Hz/60Hz | |||
| Voltage range | 180V~270 VAC | |||
| Frequency range | 45~55Hz/55~65Hz | |||
| Rated current | 16A | 22A | 16A | 22A |
| Power factor | ≥0.99 (at rated power) | |||
| THDI | ≤3% ( at rated power) | |||
| Max eiffciency | 97.20% | 97.70% | 97.20% | 97.70% |
| Euro- eiffciency | 96.50% | 97.00% | 96.50% | 97.00% |
| AC OUTPUT 2 (LOAD) | ||||
| Rated power (W) | 3000 | |||
| Rated voltage (V) | 208/220/230/240V (±2%) | |||
| Rated frequency | 50Hz/60Hz (±0.2%) | |||
| BATTERY | ||||
| Rated voltage | 48V | 120V | ||
| Voltage range | 43-58V | 108-138V | ||
| Topology of battery | Lithium battery or Lead-acid battery | |||
| Max. charging current | ≤65A | ≤20A | ||
| Max. discharging current | ≤65A | ≤20A | ||
| Max eiffciency | 94% | 95% | ||
| OTHERS | ||||
| Operating temperature range | -25℃ to +40℃ | |||
| Cooling method topology | Fan | |||
| Degree of protection | IP 20/< 1000m; | |||
| Humidity | 0~95%, Non-condensing | |||
| Noise | < 45dB | |||
| Protection | DC insulation monitoring, DC over current protection, Grounding fault monitoring, Overheating protection, Electronic Protection, Overvoltage and short circuit protection etc. | |||
| Display | LCD | |||
| LED / Button | Integrated | |||
| Communication interfaces: | RS485 (standard) Wifi (optional), Ethernet (optional), CAN-BUS (Internal Communication), USB, Genset Port | |||
| Dimension (H x W x D mm) | 500x430x190 | |||
| Weight (kg) | 25 | |||
| Installation | Moving roller / Wall-mount | |||
| Certification | VDE-AR-N4105, AS4777/3100, G83/2 | |||
| Warranty (Years) | 1 (standard) / 3 (optional) | |||
